Product Details:
|
| Features: | Antiust\durable | Material: | Cemented Alloy |
|---|---|---|---|
| Grade: | YG10X | Surface: | Polished |
| Size: | 6mm*3000mm | MOQ: | 10 PCS |
| Product Craft: | HIP Sintered | Service: | OEM,ODM |
| Highlight: | ODM Tungsten Carbide Rods,33cm ground carbide rod,30cm carbide round bar |
||

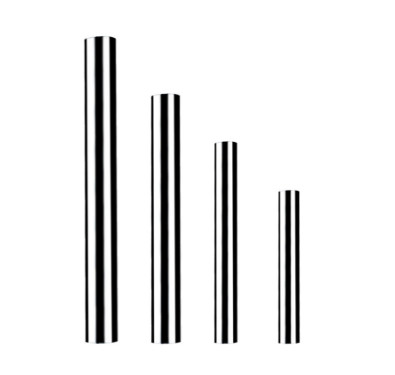

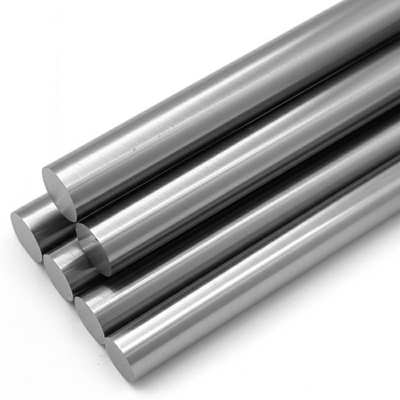

tungsten carbide rods:
1. Grade: 10% cobalt and 12% cobalt recommend
2. Size: Diameter 4--30mm available
3. Certification: ISO9001,
4. Mirror polished to h6 available
5. Metric and Inch dimensions available
6. Standard length: 330mm/310mm and can cut into different length as per requirments
cheap price tungsten carbide solid round rod Features
1. Excellent quality and reasonable price
2. 100% raw material
3. Good abrasion, heat and corrosion resistance
4. Various size and shape, grade
Production Process:
The following is the production process of tungsten carbide rods, to ensure high quality, we assure our customers:
1. All materials are tested for density, hardness and T.R.S before use.
2. Each product is subject to in-process and final inspection.
3. Each batch of products can be traced back.
tungsten carbide rods
| Grade | ISO grade |
Grain size (um) |
Binder |
density (g/cm³) |
Hardness (HV30) |
Hardness (HRA) |
T.R.S (N/m㎡) |
| KD10F | K05-K10 | 0.4 | 6 | 14.9 | 1950 | 93.0 | 2800 |
| KD10M | K05-K10 | 1.2 | 6 | 14.8 | 1510 | 91.0 | 2600 |
| KD15 | K10-K20 | 0.8 | 8 | 14.6 | 1610 | 92.0 | 3000 |
| KD20(YG10X) | K20-K30 | 0.8 | 10 | 14.4 | 1610 | 92.0 | 3800 |
| KD20F(YL10.2) | K20-K30 | 0.6 | 10 | 14.5 | 1570 | 91.5 | 3600 |
| KD25UF | K30-K40 | 0.4 | 12 | 14.2 | 1610 | 92.0 | 4000 |
| KD30M | K30-K40 | 1.5 | 15 | 14.2 | 1150 | 87.5 | 3200 |
FAQ
