API Tungsten Carbide Valve Pair Seat And Ball For Sucker Rod Pump Part

Tungsten Carbide API Valve Pair Seat And Ball For Sucker Rod Pump Part

1. 100% virgin raw materials.
2. Various kinds of grades are availalbe based on customer's application.
3. we have professional advanced production line and inspeciton equipments to ensure high quality products.
4. Precision Ground and high polishing process
5. High wear resistance,high hardness and impact toughness
6. Advanced technology , precise grinding.

 Description:

1. Valve balls and valve seats are widely used in oil fields.

2. Valve Ball and Seat performance directly affects the use effect and service life of the sucker rod pumps.

3. Each ball-and-seat combination is vacuum tested to ensure a perfect seal is obtained in all positions of contact.

Main Features

1. Material: Stainless steel; Cobalt Alloy, cast; Cobalt Alloy,Tungsten Carbide, Titanium Carbide .

2. Standard: API 11AX .
3. High resistance against corrosion and oxidation;

TYPE	BALL(MM)	SEAT(MM)
		OD	ID	Height
VII-106	16.5	20.60	11.89	13.1
VII-125	19.7	23.85	14.61	13.1
VII-150	24.4	30.20	17.83	13.1
VII-175	29.0	35.80	21.08	13.1
VII-225	35.4	44.20	26.57	13.1
VII-230	35.4	38.60		13.1
VII-250	43.3	51.60	32.13	13.1
VII-375	57.65	62.30	44.50	19.45

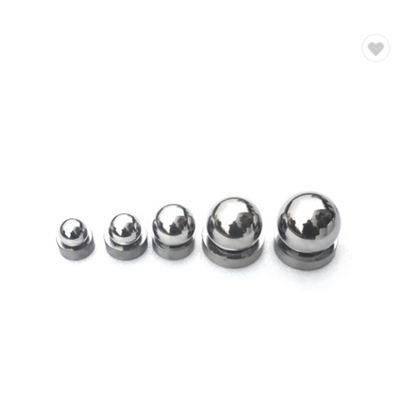

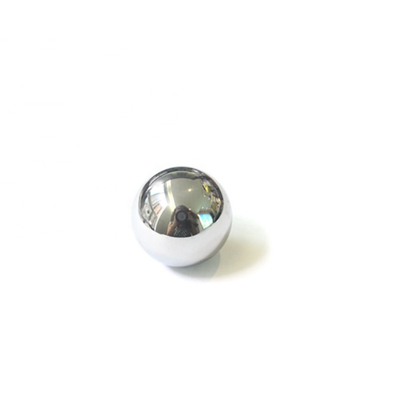

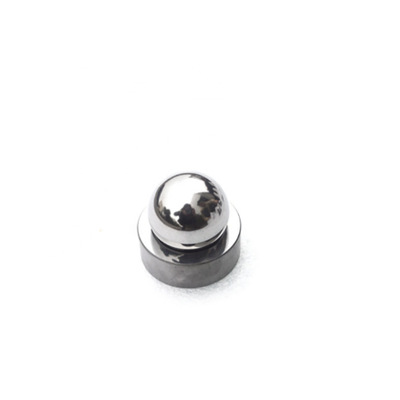

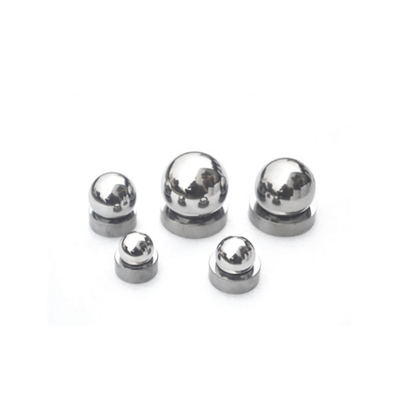

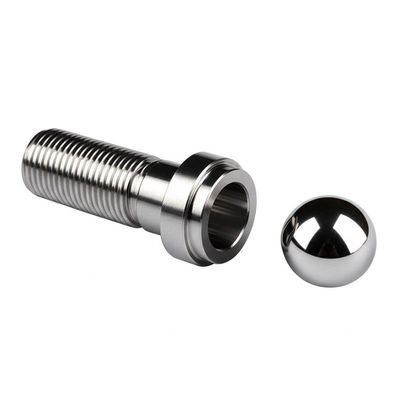

Products photos:
