Product Details:
|
| Type: | Coal Mining Tool, Oil Field Drill Bit Parts, Cross Slot Alloy Nozzle | Product Name: | Tungsten Carbide Nozzle |
|---|---|---|---|
| Material: | Tungsten Carbide WC+Co | Commodity Name: | Spherical Button Drill Bit |
| Certificate: | ISO9001:2008 | Grade: | YG8/YG13C/YG15/YG6X/YG6/YG20 |
| Application: | Petroleum,Chemical And Mechanic Industry | Keywords: | Hard Alloy Nozzle |
| Place Of Origin: | Chengdu, Sichuan , China | MOQ: | 10PCS |
| Port: | Chengdu/Shanghai/Shenzhen | ||
| Highlight: | YG13C Cemented Carbide Nozzle,Kedel tungsten carbide nozzle,Oil Spray Cemented Carbide Nozzle |
||
Specifications
There are two examples as below showed, we also accept your inquiry with drawings.
|
Model |
SP |
MSP |
NSP |
|
Outer Diameter |
25.21 |
20.44 |
20.30 |
|
Total Length |
34.80 |
30.61 |
30.80 |
|
Thread |
1-12UNF-2A |
3/4-12UFN-A-2A |
M20x2-6h |
|
Small Outer Diameter |
22.2 |
16.1 |
16.1 |
|
Length |
15.6 |
11.56 |
11.55 |
|
Endoporus |
15.8 |
12.6 |
12.7 |
|
Chamfer Angle |
3.4x20° |
1x20° |
2.4x20° |
|
Transition Arc(J) |
12.5 |
12.7 |
12.7 |
|
Transition Arc(K) |
12.5 |
12.7 |
12.7 |
|
Pore Diametrer |
09#—20#,22# |
09#—16# |
09#—16# |

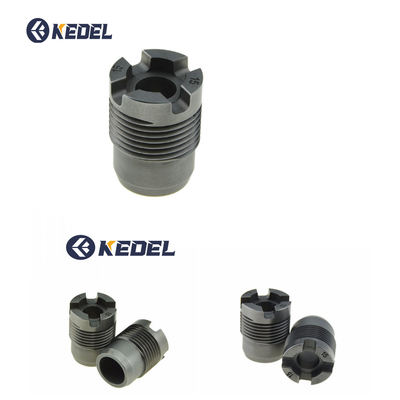

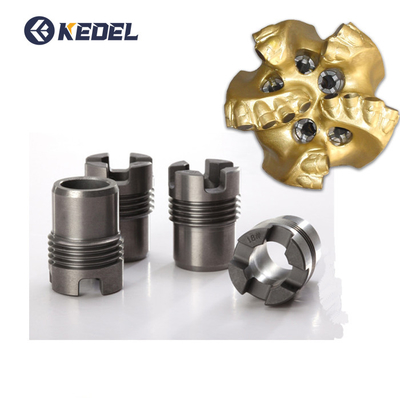

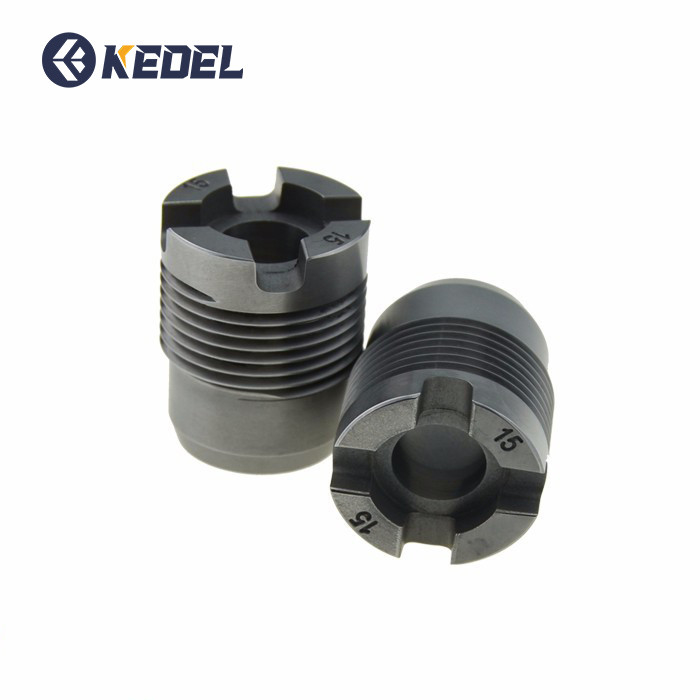

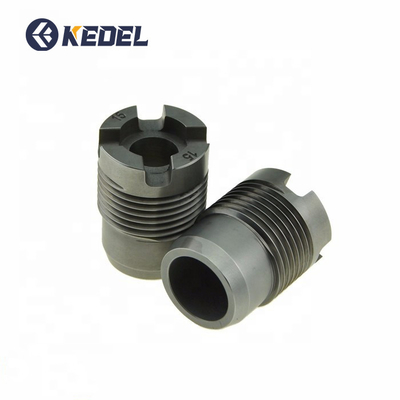

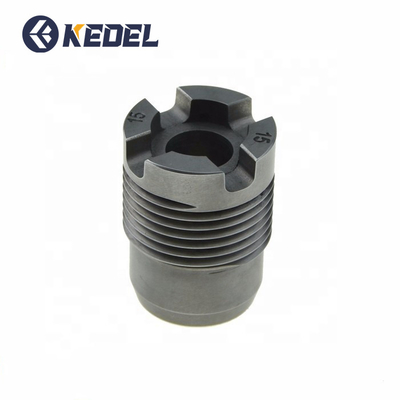

Products Show
Company Information
Chengdu Kedel Tools is a professional manufacturer of tungsten carbide products from China. Our company is mainly engaged in research, development and production of various cemented carbide tools. The company has advanced equipment and first-class technical production team to produce and sell cemented carbide products of various shapes, sizes and grades, including cemented carbide nozzles, cemented carbide bushings, cemented carbide plates, cemented carbide rods, cemented carbide rings, cemented carbide rotary files and burrs, cemented carbide end mills and cemented carbide circular blades and cutters, Cemented carbide CNC inserts and other non-standard cemented carbide parts. We are proud that the tungsten carbide parts and components developed and manufactured by Kedel Tools have been exported to North America, South America, Europe, South Africa and Southeast Asia, and our tungsten carbide products are widely used in the following fields: oil and gas industry, coal mining, mechanical seal, aerospace and steel smelting, Metal processing, military industry, new energy industry, packaging and printing industry, auto parts industry, chemical industry.
Inspection Equipmen
Packaging&Payment
Packing Details: Packing Carbide oil spray nozzle , use plastic foam, solid plastic box and carton.
Payment supports L/C, D/A, D/P, T/T, Western Union, MoneyGram payments for offline orders.
Why Choose US
We are the first manufacturer to produce threaded nozzles in China.
A number of technical backbone workers have worked for more than ten years in the company.
We have professional team and advanced equipment.
All these to ensure our professional and sincere service.
Our Pdc Drill Bit nozzle products have the advantages of high hardness, corrosion resistance, wear resistance and good toughness.
Our factory accepts non-standard customized products, the price varies with the raw material, the cost and the order quantity.
